pyzernike.radial_display

pyzernike.radial_display(n: ~numpy.array | ~typing.Sequence[~numbers.Integral], m: ~numpy.array | ~typing.Sequence[~numbers.Integral], rho_derivative: ~numpy.array | ~typing.Sequence[~numbers.Integral] | None = None, precompute: bool = True, float_type: ~numpy.floating = <class 'numpy.float64'>) → None

Display the radial Zernike polynomial \(R_{n}^{m}(\rho)\) for \(\rho \leq 1\) in an interactive matplotlib figure.

The radial Zernike polynomial is defined as follows:

\[R_{n}^{m}(\rho) = \sum_{k=0}^{(n-m)/2} \frac{(-1)^k (n-k)!}{k! ((n+m)/2 - k)! ((n-m)/2 - k)!} \rho^{n-2k}\]

If \(n < 0\), \(m < 0\), \(n < m\), or \((n - m)\) is odd, the polynomial is zero.

See also

• pyzernike.zernike_display() for displaying the full Zernike polynomial \(Z_{n}^{m}(\rho, \theta)\).

• pyzernike.core.core_display() to inspect the core implementation of the display.

• The page Mathematical description in the documentation for the detailed mathematical description of the Zernike polynomials.

The function allows to display several radial Zernike polynomials for different sets of (order, azimuthal frequency, derivative order) given as sequences.

• The parameters n, m and rho_derivative must be sequences of integers with the same length.

Parameters:

• n (Sequence[Integral] or numpy.array) – A sequence (List, Tuple) or 1D numpy array of the radial order(s) of the Zernike polynomial(s) to display. Must be non-negative integers.

• m (Sequence[Integral] or numpy.array) – A sequence (List, Tuple) or 1D numpy array of the azimuthal frequency(ies) of the Zernike polynomial(s) to display. Must be non-negative integers.

• rho_derivative (Optional[Union[Sequence[Integral], numpy.array]], optional) – A sequence (List, Tuple) or 1D numpy array of the order(s) of the radial derivative(s) to display. Must be non-negative integers. If None, is it assumed that rho_derivative is 0 for all polynomials.

• precompute (bool, optional) – If True, the useful terms for the Zernike polynomials are precomputed to optimize the computation. If False, the useful terms are computed on-the-fly to avoid memory overhead. Default is True.

• float_type (numpy.floating, optional) – The floating point type to use for the computations. Default is numpy.float64.

Return type:

None

Raises:

• TypeError – If n, m or rho_derivative (if not None) are not sequences of integers.

• ValueError – If the lengths of n, m and rho_derivative (if not None) are not the same.

Examples

Display the radial Zernike polynomial \(R_{2}^{0}(\rho)\):

from pyzernike import radial_display

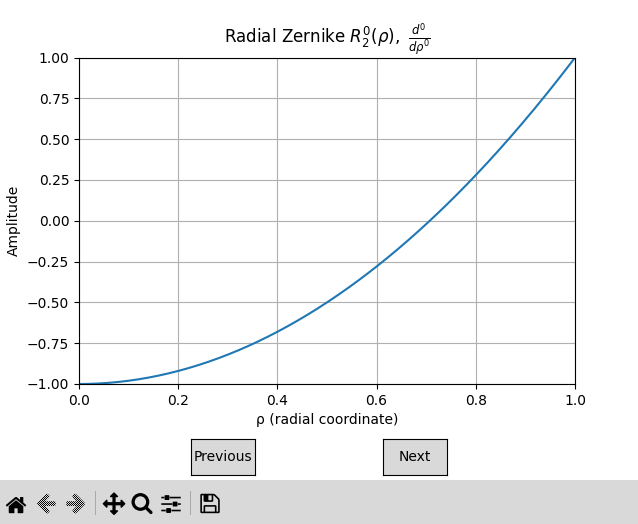

radial_display(n=[2], m=[0]) # This will display the radial Zernike polynomial R_2^0 in an interactive matplotlib figure.

To display multiple radial Zernike polynomials, you can pass sequences for n and m:

from pyzernike import radial_display
radial_display(n=[2, 3, 4], m=[0, 1, 2], rho_derivative=[0, 0, 1])
