Adjacency matrix computation for meshes

This example demonstrates a simple workflow for computing the vertices and elements adjacency matrices for a mesh using the pysdic library.

See also

pysdic.Mesh - Official documentation for the Mesh class.

Creating a Mesh

Start by creating a mesh with triangle 3 elements.

The complete mesh is composed by :

• a tetrahedral mesh at the origin.

• an additional element connected to the tetrahedral mesh by two vertices, creating a non-manifold edge in the mesh.

• an additional element not connected to the rest of the mesh, creating an isolated element in the mesh.

• an additional vertex not connected to any element, creating an isolated vertex in the mesh.

import numpy as np
from pysdic import Mesh

points = np.array([
    [0.0, 0.0, 0.0],  # Vertex 0
    [1.0, 0.0, 0.0],  # Vertex 1
    [0.0, 1.0, 0.0],  # Vertex 2
    [0.0, 0.0, 1.0],  # Vertex 3
    [1.0, 1.0, 1.0],  # Vertex 4 (additional vertex for the non-manifold edge)
    [0.0, 0.0, 2.0],  # Vertex 5 (isolated element)
    [1.0, 0.0, 2.0],  # Vertex 6 (isolated element)
    [0.0, 1.0, 2.0],  # Vertex 7 (isolated element)
    [2.0, 2.0, 1.0],  # Vertex 8 (isolated vertex)
]) # (N_v=9, E=3)

elements = np.array([
    [0, 1, 2],  # Element 0 (tetrahedral mesh)
    [0, 1, 3],  # Element 1 (tetrahedral mesh)
    [0, 2, 3],  # Element 2 (tetrahedral mesh)
    [1, 2, 3],  # Element 3 (tetrahedral mesh)
    [1, 2, 4],  # Element 4 (additional element creating a non-manifold edge with vertices 1 and 2)
    [5, 6, 7],  # Element 5 (isolated element)
]) # (N_e=6, N_npe=3)

mesh = Mesh(
    vertices=points,
    connectivity=elements,
    element_type="triangle_3"
)

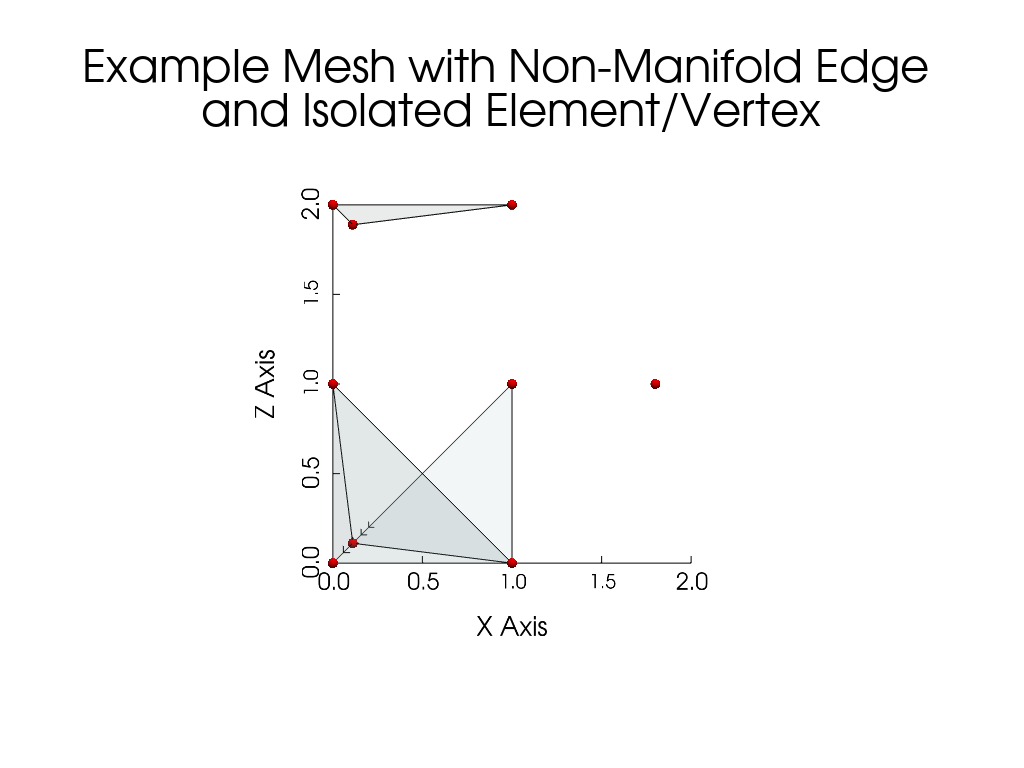

Visualize the Mesh

Visualize the mesh using the built-in visualization method with pyvista.

mesh.visualize(
    show_edges=True,
    edge_color="black",
    show_vertices=True,
    vertex_size=10,
    vertex_color="red",
    face_opacity=0.1,
    title="Example Mesh with Non-Manifold Edge \nand Isolated Element/Vertex",
    camera_position=[1.0, -8.0, 1.0],
    camera_focal_point=[1.0, 1.0, 1.0],
    camera_view_up=[0.0, 0.0, 1.0]
)

Compute the adjacency matrices

Use the compute_vertices_adjacency_matrix and compute_elements_adjacency_matrix methods of the Mesh class to compute the vertices and elements adjacency matrices, respectively.

vertices_adjacency_matrix = mesh.compute_vertices_adjacency_matrix()

elements_adjacency_matrix = mesh.compute_elements_adjacency_matrix()

print("Vertices adjacency matrix:")
print(vertices_adjacency_matrix)

print("Elements adjacency matrix:")
print(elements_adjacency_matrix)

Vertices adjacency matrix:
[[ 0  1  1  1  2 -1 -1 -1 -1]
 [ 1  0  1  1  1 -1 -1 -1 -1]
 [ 1  1  0  1  1 -1 -1 -1 -1]
 [ 1  1  1  0  2 -1 -1 -1 -1]
 [ 2  1  1  2  0 -1 -1 -1 -1]
 [-1 -1 -1 -1 -1  0  1  1 -1]
 [-1 -1 -1 -1 -1  1  0  1 -1]
 [-1 -1 -1 -1 -1  1  1  0 -1]
 [-1 -1 -1 -1 -1 -1 -1 -1  0]]
Elements adjacency matrix:
[[ 0  1  1  1  1 -1]
 [ 1  0  1  1  1 -1]
 [ 1  1  0  1  1 -1]
 [ 1  1  1  0  1 -1]
 [ 1  1  1  1  0 -1]
 [-1 -1 -1 -1 -1  0]]

Example on a larger mesh

from pysdic import create_triangle_3_heightmap
import time

surface_mesh = create_triangle_3_heightmap(
    height_function=lambda x, y: 0.5 * np.sin(np.pi * x) * np.cos(np.pi * y),
    x_bounds=(-1.0, 1.0),
    y_bounds=(-1.0, 1.0),
    n_x=50,
    n_y=50,
)

t0 = time.perf_counter()
vertices_adjacency_matrix = surface_mesh.compute_vertices_adjacency_matrix(max_distance=10)
t1 = time.perf_counter()
t2 = time.perf_counter()
elements_adjacency_matrix = surface_mesh.compute_elements_adjacency_matrix(max_distance=10)
t3 = time.perf_counter()
print(f"Vertices adjacency matrix shape: {vertices_adjacency_matrix.shape}, computed in {t1 - t0:.4f} seconds.")
print(f"Elements adjacency matrix shape: {elements_adjacency_matrix.shape}, computed in {t3 - t2:.4f} seconds.")

Vertices adjacency matrix shape: (2500, 2500), computed in 0.3241 seconds.
Elements adjacency matrix shape: (4802, 4802), computed in 1.0909 seconds.

Extract the neighborhood of a vertex

If you are only interested in the neighborhood of vertices or elements, you can use the compute_vertices_neighborhood and compute_elements_neighborhood methods of the Mesh class, respectively, which return a list of numpy.ndarray containing the indices of the neighboring vertices or elements for each vertex or element in the mesh. The neighborhood of a vertex (or element) is defined as the set of vertices (or elements) that are within a specified distance from the vertex (or element) in the connectivity of the mesh.

from pysdic import create_triangle_3_heightmap
import time

surface_mesh = create_triangle_3_heightmap(
    height_function=lambda x, y: 0.5 * np.sin(np.pi * x) * np.cos(np.pi * y),
    x_bounds=(-1.0, 1.0),
    y_bounds=(-1.0, 1.0),
    n_x=50,
    n_y=50,
)

t0 = time.perf_counter()
vertices_neighborhood = surface_mesh.compute_vertices_neighborhood(max_distance=2, self_neighborhood=True)
t1 = time.perf_counter()
t2 = time.perf_counter()
elements_neighborhood = surface_mesh.compute_elements_neighborhood(max_distance=2, self_neighborhood=True)
t3 = time.perf_counter()
print(f"Vertices neighborhood of vertex 0: {vertices_neighborhood[0]}, computed in {t1 - t0:.4f} seconds.")
print(f"Elements neighborhood of element 0: {elements_neighborhood[0]}, computed in {t3 - t2:.4f} seconds.")

Vertices neighborhood of vertex 0: [0, 1, 50, 51, 2, 52, 100, 101, 102], computed in 1.6481 seconds.
Elements neighborhood of element 0: [0, 1, 2, 3, 100, 98, 101, 99, 4, 5, 102, 103, 198, 200, 201, 196, 199], computed in 6.0926 seconds.
