Distorting an image with distort_image and undistort_image

This example illustrate how to use the distort_image function to apply a distortion to an image using a specified camera model, which includes the intrinsic and distortion transformations.

See also

• pycvcam.distort_image() for the function to apply distortion to an image.

• pycvcam.undistort_image() for the function to remove distortion from an image.

• pycvcam.core.Intrinsic for the intrinsic transformation.

• pycvcam.core.Distortion for the distortion transformation.

Simple Worflow

Once the Intrinsic and Distortion transformations are defined, the distortion can be applied to an image using the distort_image function. The function returns the distorted image.

For example, load an image and apply a Zernike distortion to it using the distort_image function. The distortion parameters are loaded from a JSON file containing the Zernike coefficients.

Note

The return distorted image is numpy.float64 type, which may contain pixel values outside the valid range [0, 255]. It is recommended to clip the pixel values to [0, 255] and convert the image to numpy.uint8 type before saving or displaying it.

import numpy
import pycvcam
import matplotlib.pyplot as plt
import cv2
import os

# Create a grid image to visualize the distortion effect
image_height, image_width = 480, 640
src = numpy.full((image_height, image_width, 3), 255, dtype=numpy.uint8)
for i in range(0, image_height, 40):
    cv2.line(src, (0, i), (image_width, i), (0, 0, 0), 2)
for j in range(0, image_width, 40):
    cv2.line(src, (j, 0), (j, image_height), (0, 0, 0), 2)

# Create a simple intrinsic transformation
intrinsic = pycvcam.Cv2Intrinsic.from_matrix(
    [[1000.0, 0.0, image_width / 2], [0.0, 1000.0, image_height / 2], [0.0, 0.0, 1.0]]
)

# Create a distortion transformation (Example Zernike distortion)
distortion = pycvcam.Cv2Distortion(
    parameters=[0.2, 0.25, 0.07, 0.04, 0.008, 0.004, 0.001, 0.0005]
)

# Distort the image
distorted_image = pycvcam.distort_image(
    src,
    intrinsic=intrinsic,
    distortion=distortion,
    method="undistort",
    interpolation="cubic",
)
distorted_image = numpy.clip(distorted_image, 0, 255).astype(
    numpy.uint8
)  # Ensure pixel values are valid

# Undistort the image back to the original using the same parameters
undistorted_image = pycvcam.undistort_image(
    distorted_image,
    intrinsic=intrinsic,
    distortion=distortion,
    interpolation="cubic",
)

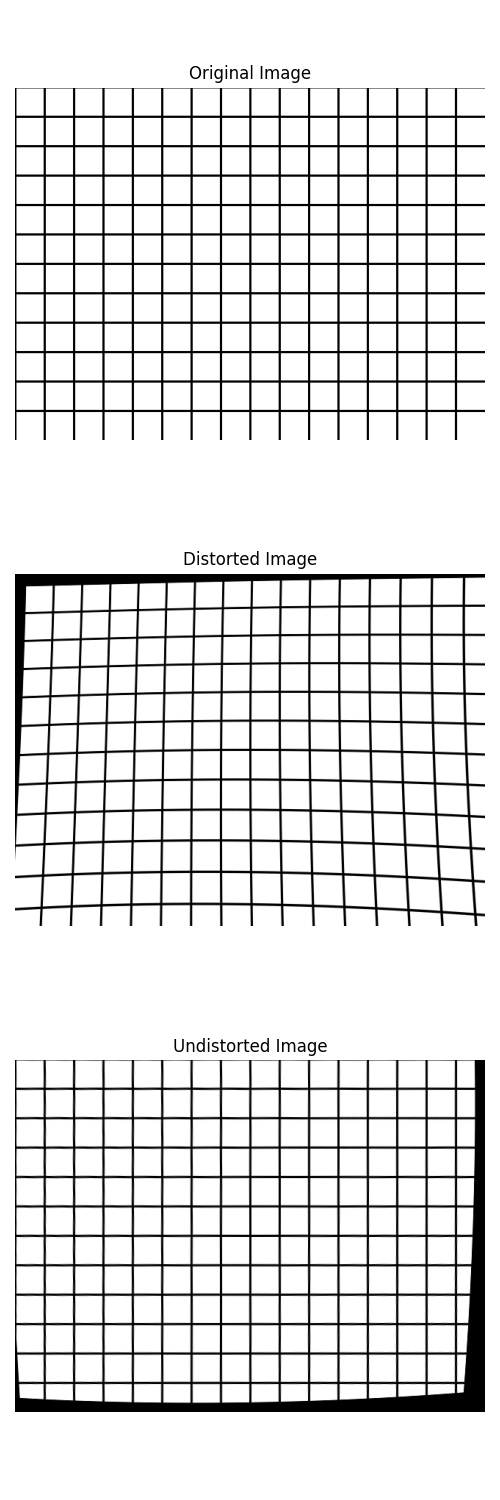

# Display the distorted image
fig = plt.figure(figsize=(5, 15))
ax_src = fig.add_subplot(311)
ax_src.imshow(src)
ax_src.set_title("Original Image")
ax_src.axis("off")
ax_distorted = fig.add_subplot(312)
ax_distorted.imshow(distorted_image)
ax_distorted.set_title("Distorted Image")
ax_distorted.axis("off")
ax_undistorted = fig.add_subplot(313)
ax_undistorted.imshow(undistorted_image)
ax_undistorted.set_title("Undistorted Image")
ax_undistorted.axis("off")
plt.tight_layout()
plt.show()

Apply the distortion in the image space

By default the distortion is applied in the normalized image space from the normalized_points to the distorted_points and then the intrinsic transformation is applied to get the final image_points

But you can define the distortion in the image space and just set the intrinsic transformation to None, in this case the distortion will be applied directly to the image points without any intrinsic transformation. For example, we create a zernike distortion but with parameters weights defines in pixels units instead of normalized units, and set the Zernike domain to the image space.

# Create a Zernike distortion with parameters defined in pixels units and domain in the image space
zernike_distortion = pycvcam.ZernikeDistortion(
    parameters=[
        0.8541972545746392,
        -5.468596289790535,
        -5.974287819021697,
        14.292956075116104,
        2.1403205479372627,
        4.544169430137205,
        -0.10099732464199339,
        0.4363509204067417,
        -0.5106374355681896,
        -5.770087687650705,
        -0.39147505788710696,
        11.699411273002498,
    ]  # In pixels units, example values for a small distortion
)
zernike_distortion.center = ((image_width - 1) / 2, (image_height - 1) / 2)
zernike_distortion.radius = numpy.sqrt(
    ((image_width - 1) / 2) ** 2 + ((image_height - 1) / 2) ** 2
)

# Distort the image using the Zernike distortion defined in the image space
distorted_image_pixels = pycvcam.distort_image(
    src,
    intrinsic=None,  # No intrinsic transformation, distortion is applied in the image space
    distortion=zernike_distortion,
    method="undistort",
    interpolation="cubic",
    inverse_distortion_kwargs={"eps": 1e-1},  # tolerance for undistort -> 0.1 pixel
)

distorted_image_pixels = numpy.clip(distorted_image_pixels, 0, 255).astype(
    numpy.uint8
)  # Ensure pixel values are valid

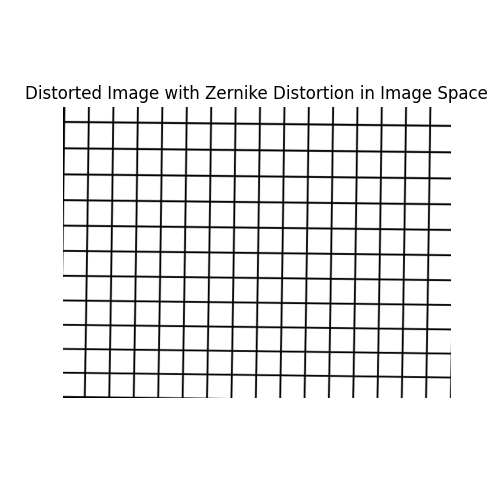

# Display the distorted image
plt.figure(figsize=(5, 5))
plt.imshow(distorted_image_pixels)
plt.title("Distorted Image with Zernike Distortion in Image Space")
plt.axis("off")
plt.show()

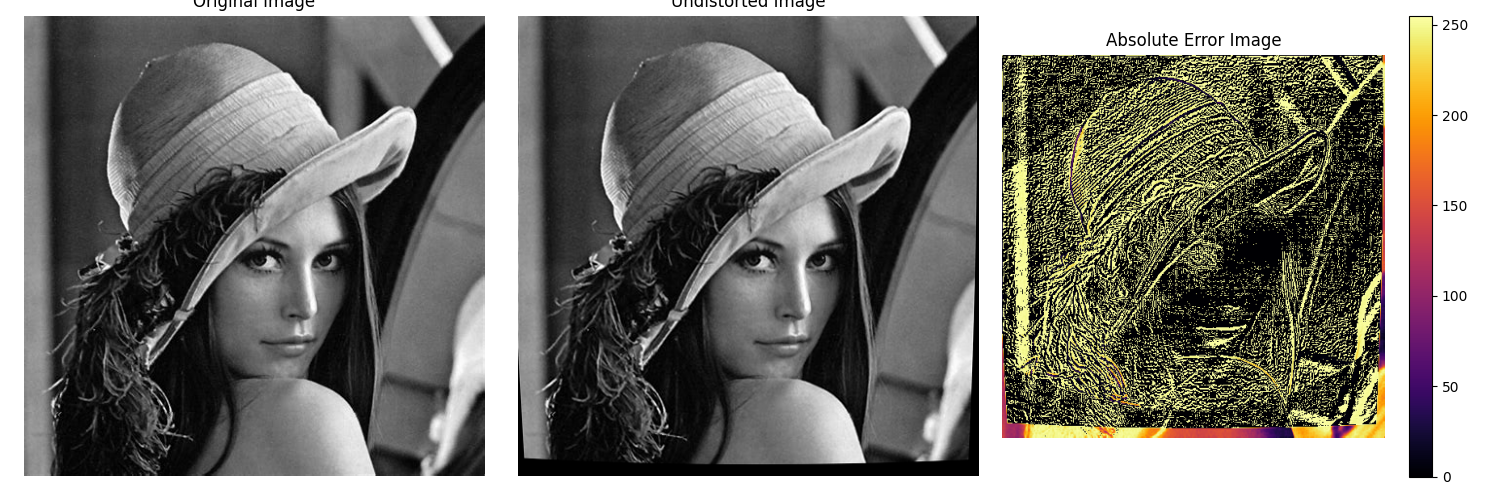

Interpolation error

The interpolation error can be studied by applying the distortion and then undistortion to an image and comparing the result with the original image.

The computation in done only ofr the inner part of the image to avoid the border effects of the distortion and undistortion.

image = pycvcam.get_lena_image()
height, width = image.shape[:2]
zernike_distortion.center = ((width - 1) / 2, (height - 1) / 2)
zernike_distortion.radius = numpy.sqrt(((width - 1) / 2) ** 2 + ((height - 1) / 2) ** 2)

distorted_image = pycvcam.distort_image(
    image,
    intrinsic=intrinsic,
    distortion=distortion,
    method="undistort",
    interpolation="cubic",
    inverse_distortion_kwargs={"eps": 1e-3},  # tolerance for undistort -> 0.001 pixel
)
undistorted_image = pycvcam.undistort_image(
    distorted_image,
    intrinsic=intrinsic,
    distortion=distortion,
    interpolation="cubic",
)

error_image = numpy.abs(undistorted_image - image)


rmse = numpy.sqrt(numpy.mean(error_image[20:-20, 20:-20] ** 2))
print(f"RMSE of undistortion: {rmse:.4f} GL")

plt.figure(figsize=(15, 5))
plt.subplot(1, 3, 1)
plt.title("Original Image")
plt.imshow(image, cmap="gray")
plt.axis("off")
plt.subplot(1, 3, 2)
plt.title("Undistorted Image")
plt.imshow(undistorted_image, cmap="gray")
plt.axis("off")
plt.subplot(1, 3, 3)
plt.title("Absolute Error Image")
plt.imshow(error_image, cmap="inferno", vmin=0, vmax=255)
plt.axis("off")
plt.colorbar()
plt.tight_layout()
plt.show()

RMSE of undistortion: 3.2035 GL
