Welcome to pyclickimage’s documentation!#

Description of the package#

pyclickimage is a Python package providing a graphical interface to collect 2D coordinates of points on images.

The application supports:

  • multiple images per annotation session,

  • multiple annotation groups,

  • subpixel floating-point coordinates,

  • CSV session import/export,

  • visualization and display controls,

  • programmatic extraction of annotations.

Contents#

The documentation is divided into the following sections:

  • Installation: How to install the package.

  • API Reference: Reference documentation for user functions and developer classes.

  • Usage: Tutorials and examples explaining how to use the application.

Contents:

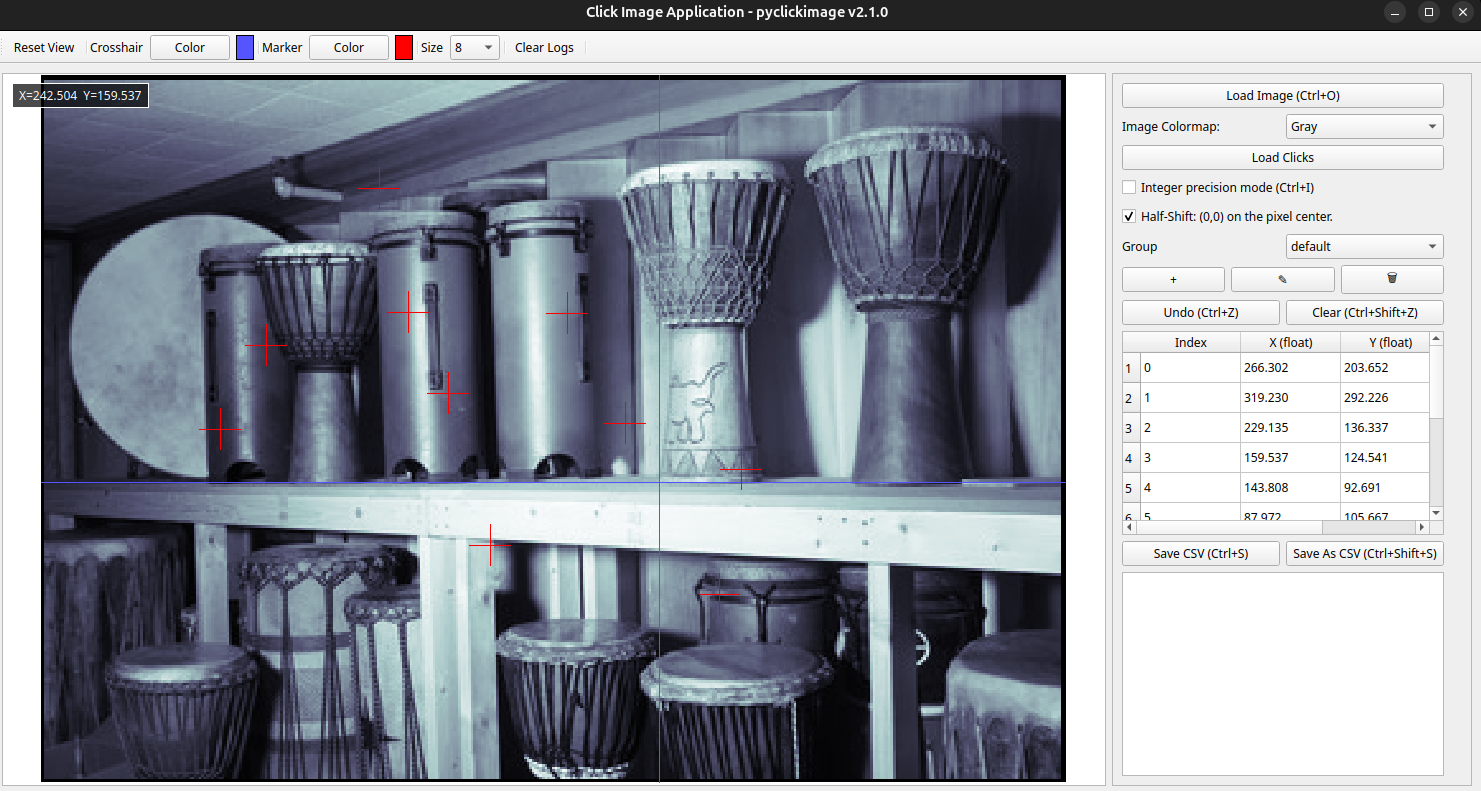

Running the application#

A terminal command is installed with the package to launch the graphical interface:

pyclickimage-gui

The application can also be launched from Python using:

import pyclickimage

pyclickimage.run()
_images/app.png

Annotation sessions#

Annotations are stored as complete sessions.

A session can contain multiple images and multiple annotation groups. The CSV format is:

Image,Group,Index,X,Y
image_1.png,default,0,128.5,102.0
image_1.png,default,1,115.2,153.7
image_1.png,Coco,0,201.0,126.5
image_2.png,default,0,80.0,45.3

Coordinates are stored as floating-point values to preserve subpixel precision.

The coordinates follow NumPy image indexing conventions:

image[Y, X]

where:

  • X is the horizontal coordinate (column index),

  • Y is the vertical coordinate (row index).

Author#

The package pyclickimage was created by:

Resources#

The source code and documentation are available at:

License#

pyclickimage is distributed under the GNU General Public License version 3 or later (GPL-3.0-or-later).

See the LICENSE file included with the package for more information.
